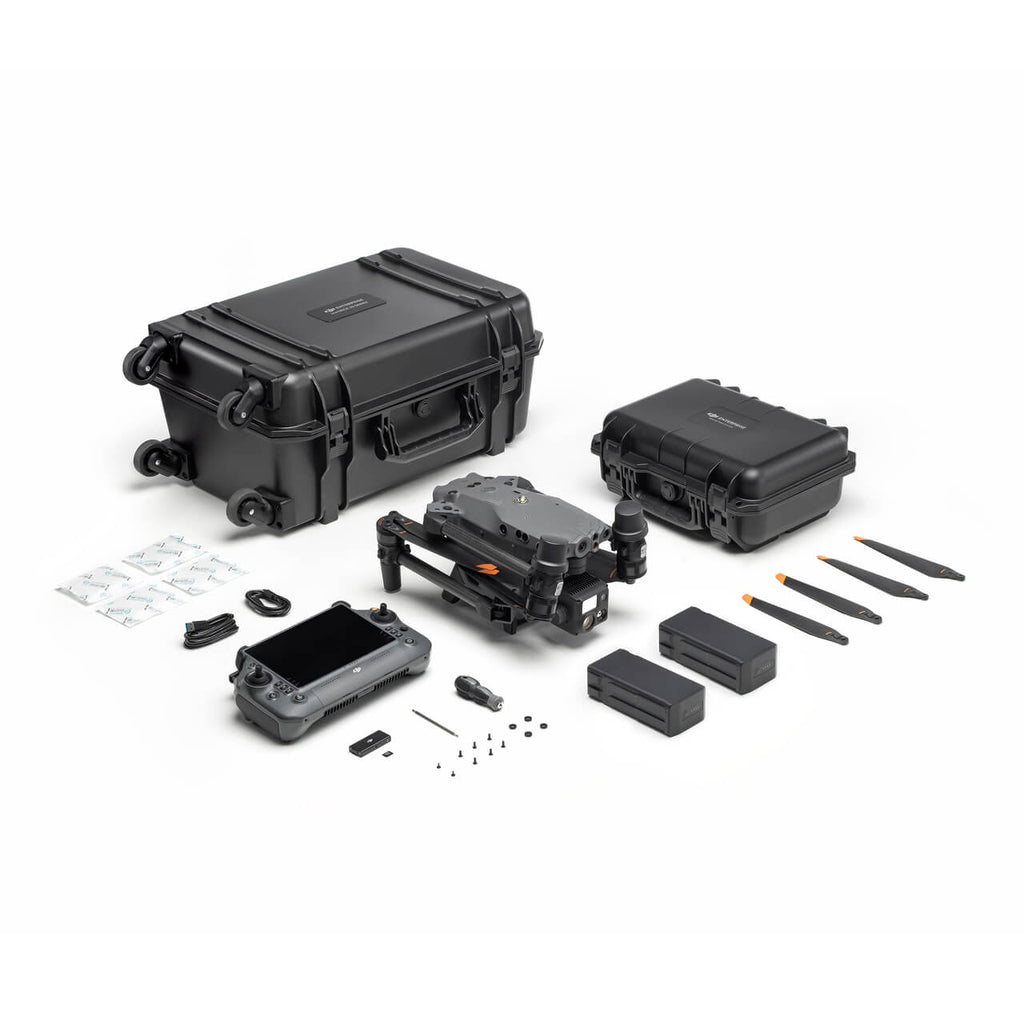

Package includes:

-Matrice 30

-DJI RC PLUS

-DJI Pilot 2

DJI FlightHUB 2 (3 Months Subscription)

DJI Care Enterprise - Basic (1 Year)

   -Up to 2 repairs upon payment of approximately 665 Euro for the first and 750 Euro for the second.

   -A standard maintenance service

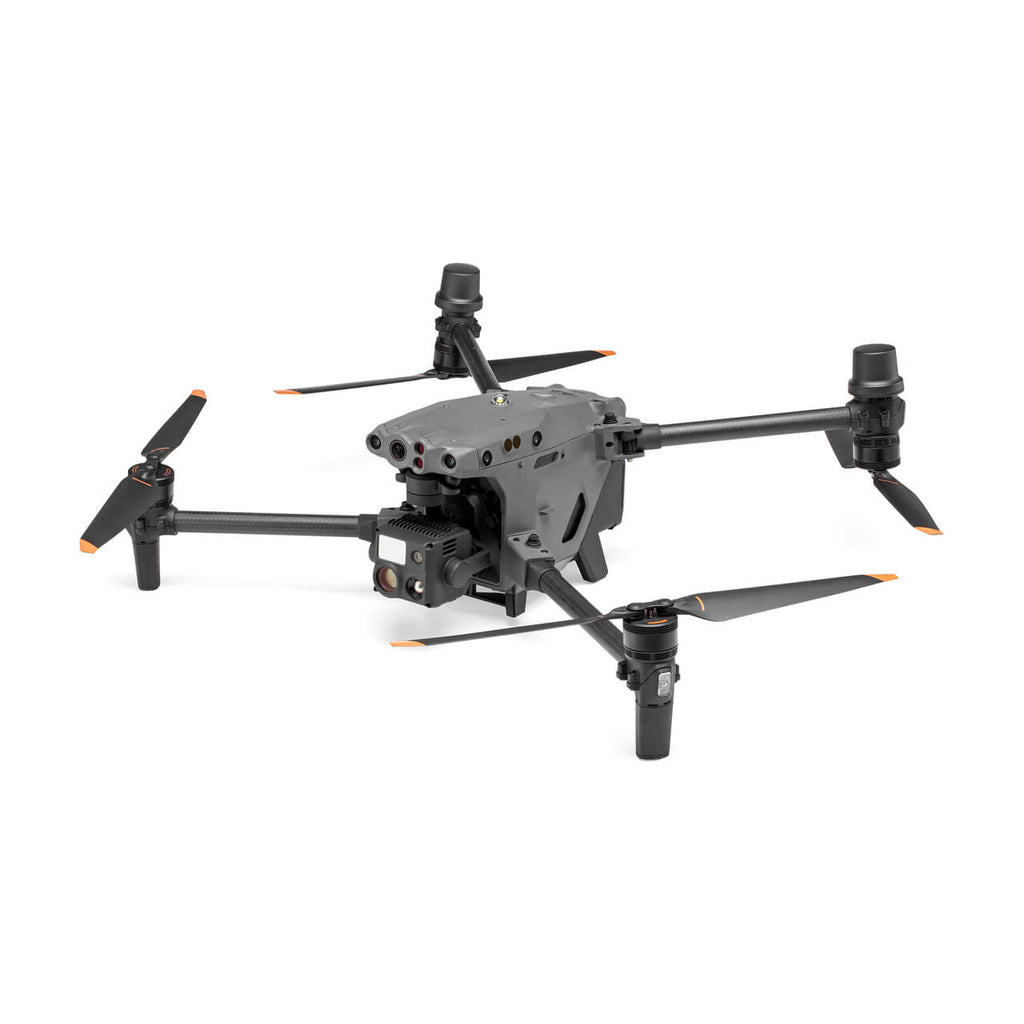

The new DJI Matrice 30T aims to deliver all the power of the Matrice 300RTK with H20T set while maximising its portability.

With up to 40 minutes of autonomy and IP55 protection, this device can operate almost uninterruptedly in even the harshest environments. It can operate in environments from -20 to 50ºC and allows hot swapping of batteries.

The new RC Plus remote control increases work efficiency thanks to its powerful transmit/receive capability for a smooth image of the highest quality, includes a large high brightness touch screen and external hot-swappable battery to ensure constant operation. Unmanned Solutions sees this drone being the standard drone for all search and rescue operations.

Its powerful thermal camera enables thermographic inspection work as well as surveillance work that requires this type of camera.

Specifications

    Dimensions
    (unfolded, excl. propellers)
    470×585×215 mm (L×W×H)

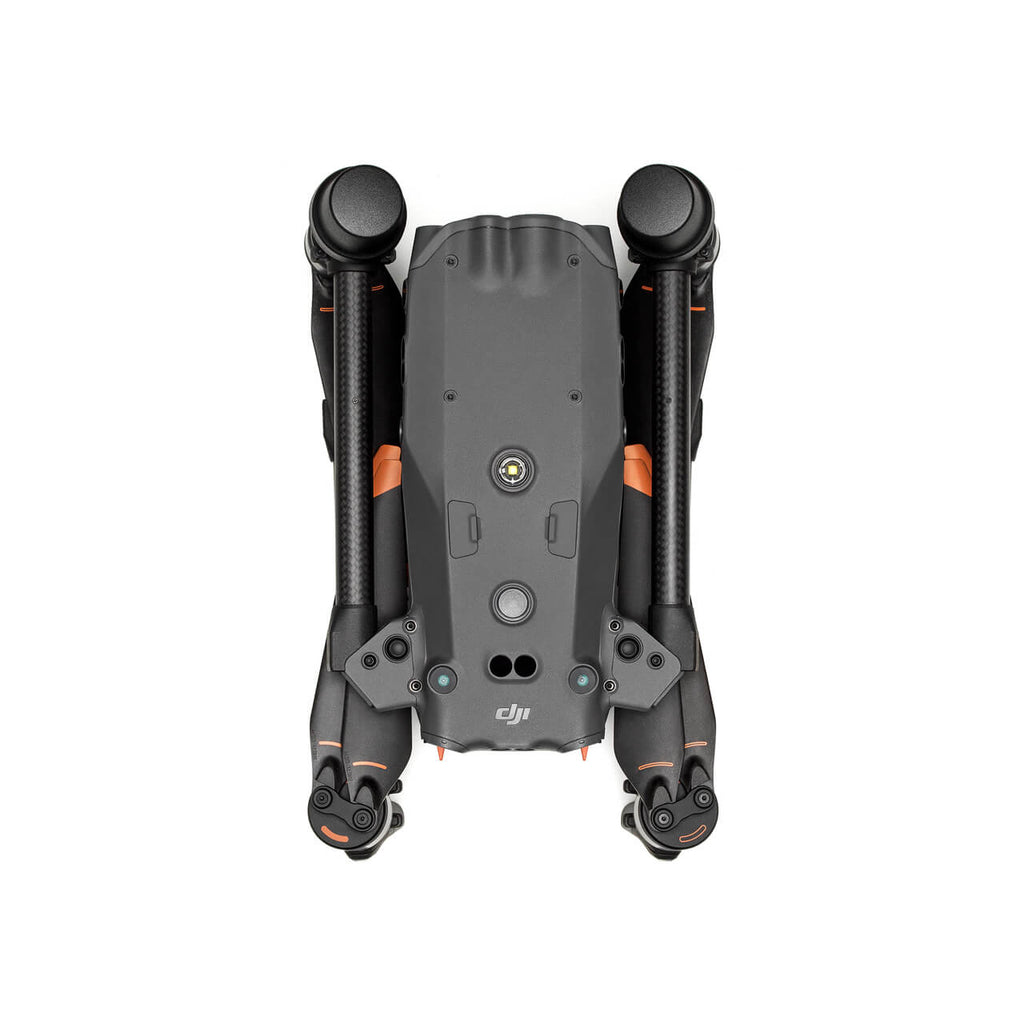

    Dimensions (folded)
    365×215×195 mm (L×W×H)

    Diagonal Wheelbase
    668 mm

    Weight (incl. two batteries)
    3770 ± 10 g

    Max Takeoff Weight
    4000 g

    Operation Frequency
    2.4000-2.4835 GHz; 5.725-5.850 GHz

    Transmitter Power (EIRP)
    2.4 GHz: <20 dBm
    5.8 GHz: <14 dBm

    Hovering Accuracy
    (windless or breezy)
    Vertical: ±0.1 m (Vision System enabled); ±0.5 m (N-mode with GPS); ±0.1 m (RTK)
    Horizontal: ±0.3 m (Vision System enabled); ±1.5 m (N-mode with GPS); ±0.1 m (RTK)

    RTK Positioning Accuracy
    (fixed RTK enabled)
    1 cm+1 ppm (horizontal)
    1.5 cm+1 ppm (vertical)

    Max Angular Velocity
    Pitch: 150°/sec.; Yaw: 100°/sec.

    Max Tilt Angle
    35° (N-mode and Forward Vision System enabled: 25°)

    Max Ascent/Descent Speed
    6 m/s, 5 m/s

    Max Tilt Descent Speed
    7 m/s

    Max Horizontal Speed
    23 m/s

    Max Service Ceiling Above Sea Level (without other payload)
    5,000 m (with 1671 propellers)
    7,000 m (with 1676 propellers)

    Max Wind Resistance
    15 m/s
    12 m/s during taking off and landing

    Max Hover Time
    36 min

    Max Flight Time
    41 min

    Motor Model
    3511

    Propeller Model
    1671
    1676 High Altitude (not included)

    Ingress Protection Rating
    IP55

    GNSS
    GPS+Galileo+BeiDou+GLONASS(GLONASS is supported only when RTK module is enabled)

    Operating Temperature
    -20° to 50° C (-4° to 122° F)

Gimbal

    Angular Vibration Range
    ±0.01°

    Controllable Range
    Pan: ±90°
    Tilt: -120° to +45°

    Mechanical Range
    Pan: ±105°
    Tilt: -135° to +60°
    Roll: ±45°

Zoom Camera

    Sensor
    1/2" CMOS, Effective pixels: 48M

    Lens
    Focal length: 21-75 mm (equivalent: 113-405 mm)
    Aperture: f/2.8-f/4.2
    Focus: 5 m to ∞

Wide Camera

    Sensor
    1/2" CMOS, Effective pixels: 12M

    Lens
    DFOV: 84°
    Focal length: 4.5 mm (equivalent: 24 mm)
    Aperture: f/2.8
    Focus: 1 m to ∞

Thermal Camera

    Thermal Imager
    Uncooled VOx Microbolometer

    Lens
    DFOV: 64°
    Focal length: 9.1 mm (equivalent: 40 mm)
    Aperture: f/1.0
    Focus: 5 m to ∞

    Infrared Temperature Measurement Accuracy
    ±2°C or ±2% (using the larger value)

FPV Camera

    Resolution
    1920×1080

    DFOV
    161°

    Frame Rate
    30 fps

Laser Module

    Wavelength
    905 nm

    Max Laser Power
    3.5 mW

    Single Pulse Width
    6 ns

    Measurement Accuracy
    ± (0.2 m + D×0.15%)D is the distance to a vertical surface

    Measuring Range
    3-1,200 m (0.5×12 m vertical surface with 20% reflectivity)

Vision Systems

    Obstacle Sensing Range
    Forward: 0.6-38 m
    Upward/Downward/Backward/Sideward: 0.5-33 m

    FOV
    65° (H), 50° (V)

    Operating Environment
    Surfaces with clear patterns and adequate lighting (> 15 lux)

Infrared Sensing Systems

    Obstacle Sensing Range
    0.1 to 10 m

    FOV
    30°

    Operating Environment
    Large, diffuse, and reflective obstacles (reflectivity >10%)

TB30 Intelligent Flight Battery

    Capacity
    5880 mAh

    Voltage
    26.1 V

    Battery Type
    LiPo 6S

    Energy
    131.6 Wh

    Net Weight
    Approx. 685 g

    Operating Temperature
    -20° to 50° C (-4° to 122° F)

    Storage Temperature
    20° to 30° C (68° to 86° F)

    Charging Temperature
    -20° to 40° C (-4° to 104° F)(When the temperature is lower than 10° C (50° F), the self-heating function will be automatically enabled. Charging in a low temperature may shorten the lifetime of the battery)

    Chemical System
    LiNiMnCoO2

Auxiliary Lights

    Effective Illumination Distance
    5 m

    Illumination Type
    60 Hz, solid glow

Remote Controller

    Screen
    7.02 inch LCD touchscreen, with a resolution of 1920×1200 pixels, and high brightness of 1200 cd/m2

    Internal Battery
    Type: Li-ion (6500 mAh @ 7.2 V)
    Charge Type: Supports battery station or USB-C charger maximum rated power 65W (max voltage of 20V)
    Charge Time: 2 hours
    Chemical System: LiNiCoAIO2

    External Battery(WB37 Intelligent Battery)
    Capacity: 4920 mAh
    Voltage: 7.6 V
    Battery Type: Li-ion
    Energy: 37.39 Wh
    Chemical System: LiCoO2

    Operating Time
    Internal Battery: Approx. 3 hours 18 minInternal Battery + External Battery: Approx. 6 hours

    Ingress Protection Rating
    IP54

    GNSS
    GPS+Galileo+BeiDou

    Operating Temperature
    -20° to 50° C (-4° to 122° F)

O3 Enterprise

    Operating Frequency
    2.4000-2.4835 GHz, 5.725-5.850 GHz

    Max Transmission Distance (unobstructed, free of interference)
    2.4000-2.4835 GHz: 8 km

    Max Transmission Distance (with interference)
    Strong Interference (urban landscape, limited line of sight, many competing signals): 1.5-3 km
    Medium Interference (suburban landscape, open line of sight, some competing signals): 3-6 km
    Weak Interference (open landscape abundant line of sight, few competing signals): 6-8 km

    Transmitter Power (EIRP)
    2.4 GHz: <20 dBm
    5.8 GHz: <14 dBm

Wi-Fi

    Protocol
    Wi-Fi 6

    Operating Frequency
    2.4000-2.4835 GHz; 5.150-5.250 GHz; 5.725-5.850 GHz

    Transmitter Power (EIRP)
    2.4 GHz: <20 dBm
    5.1 GHz: <23 dBm
    5.8 GHz: <14 dBm

Bluetooth

    Protocol
    Bluetooth 5.1

    Operating Frequency
    2.4000-2.4835 GHz

    Transmitter Power (EIRP)
    <10 dBm

BS30 Intelligent Battery Station

    Dimensions
    353×267×148 mm

    Net Weight
    3.95 kg

    Compatible Battery Type
    TB30 Intelligent Flight Battery
    WB37 Intelligent Battery

    Input
    100-240 VAC, 50/60 Hz

    Output
    TB30 Battery Port: 26.1 V, 8.9 A (supported up to two outputs simultaneously)
    WB37 Intelligent Battery: 8.7 V, 6 A

    Output Power
    525 W

    USB-C port
    Max. output power of 65 W

    USB-A port
    Max. output power of 10 W (5 V, 2 A)

    Power Consumption (when not charging battery)
    < 8 W

    Output Power (when warming up battery)
    Approx. 30 W

    Operating Temperature
    -20° to 40° C (-4° to 104° F)

    Ingress Protection Rating
    IP55 (with the cover closed properly)

    Charging Time
    Approx. 30 min (charging two TB30 batteries from 20%-90%)
    Approx. 50 min (charging two TB30 batteries from 0%-100%)

    Protection Features
    Anti-Backflow Protection
    Short Circuit Protection
    Over Voltage Protection
    Over Current Protection
    Temperature Protection
