Key Features

• Suits both new and experienced aerobatic pilots.
• Highly prefabricated ARTF kit.
• For i.c. or electric power.
• Large top hatch for easy fuselage access.
• Locked-in flying characteristics.
• Electric motor conversion mount included.
• Requires 5-channel R/C with maximum 6 servos.
• 2-stroke glow option: .46 - .55cu. in.
• 4-stroke glow option: .52 - .72cu. in.
• Petrol engine option: 10cc.
• Electric flight option: 830KV motor; 4S LiPo; 50A ESC.
• Attractive retro colour scheme.
• Finished in high-quality Oracover film.
• Superb build quality.
• Rugged and practical trike u/c arrangement.
• All hardware included.

What's in the Box

• 1x Factory finished fuselage assembly.
• 1x Factory finished 2-piece wing set.
• 1x Factory finished tailplane.
• 1x Factory finished fin & rudder.
• 1x Comprehensive high-quality hardware pack.
• 1x Aluminium main spar.
• 1x Factory painted glass fibre cowl.

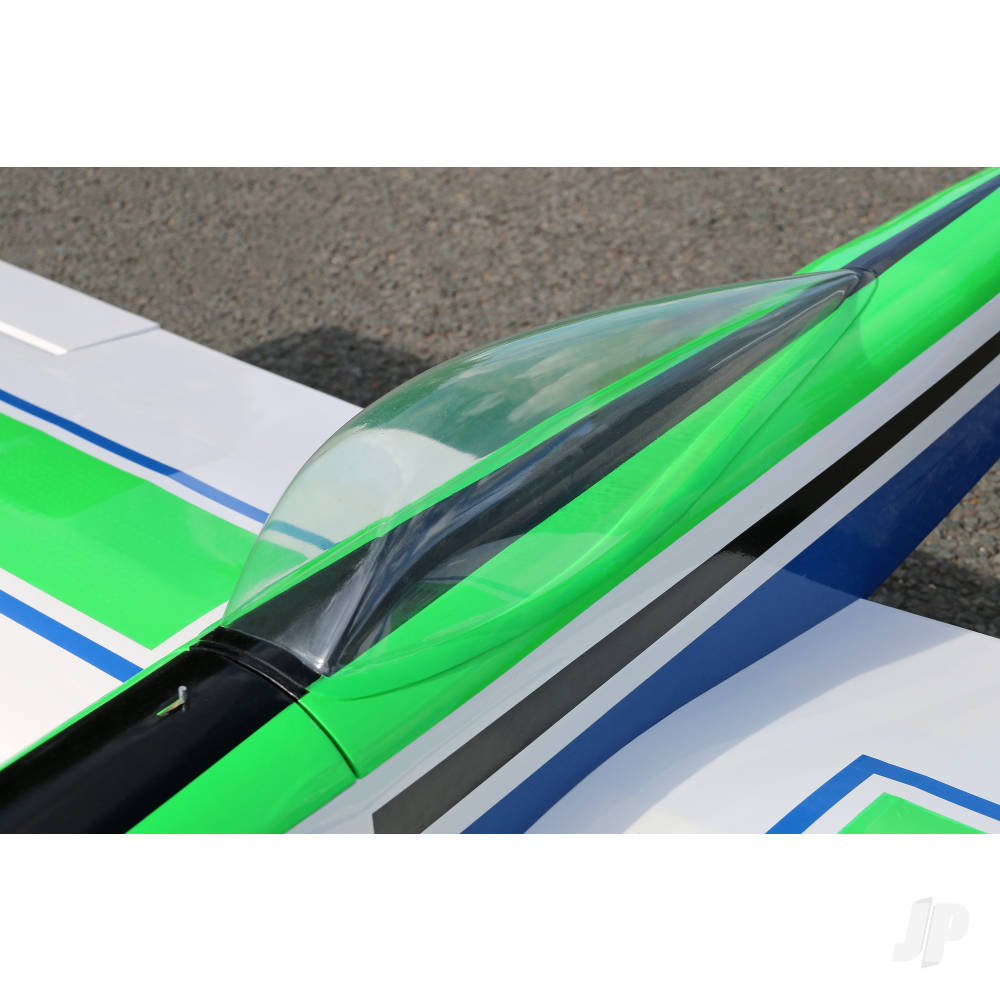

• 1x Crystal clear canopy moulding.
• 1x Preformed wire u/c and wheel set.
• 1x Engine mount.
• 1x Plastic spinner.
• 1x Step-by-step instruction manual.

Needed to Complete

• 1x Suitable 2- or 4-Stroke engine or electric powertrain.
• 1x Propeller to suit chosen engine / motor.
• 1x 5-Channel (minimum) computer transmitter and receiver combo.
• 5x Standard-size servos (if using electric power).
• 6x Standard-size servos (if using i.c. engine).

Product Description

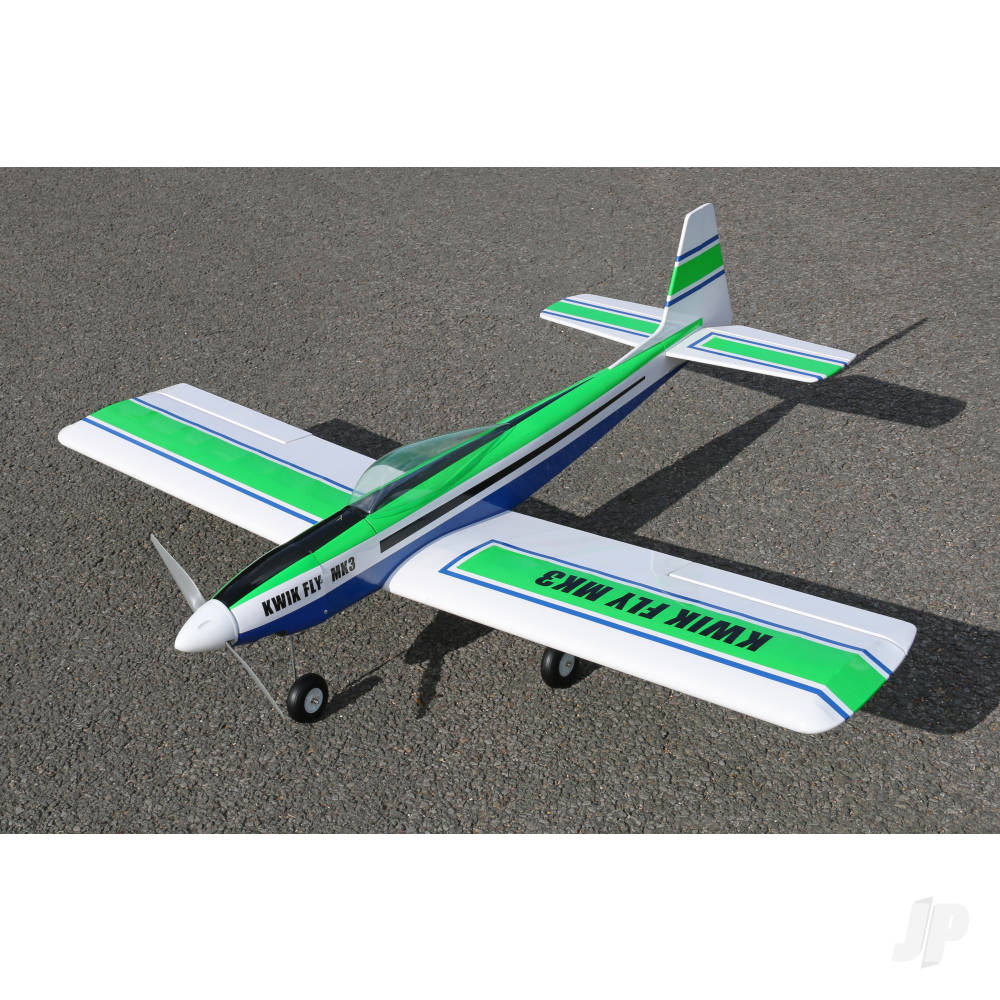

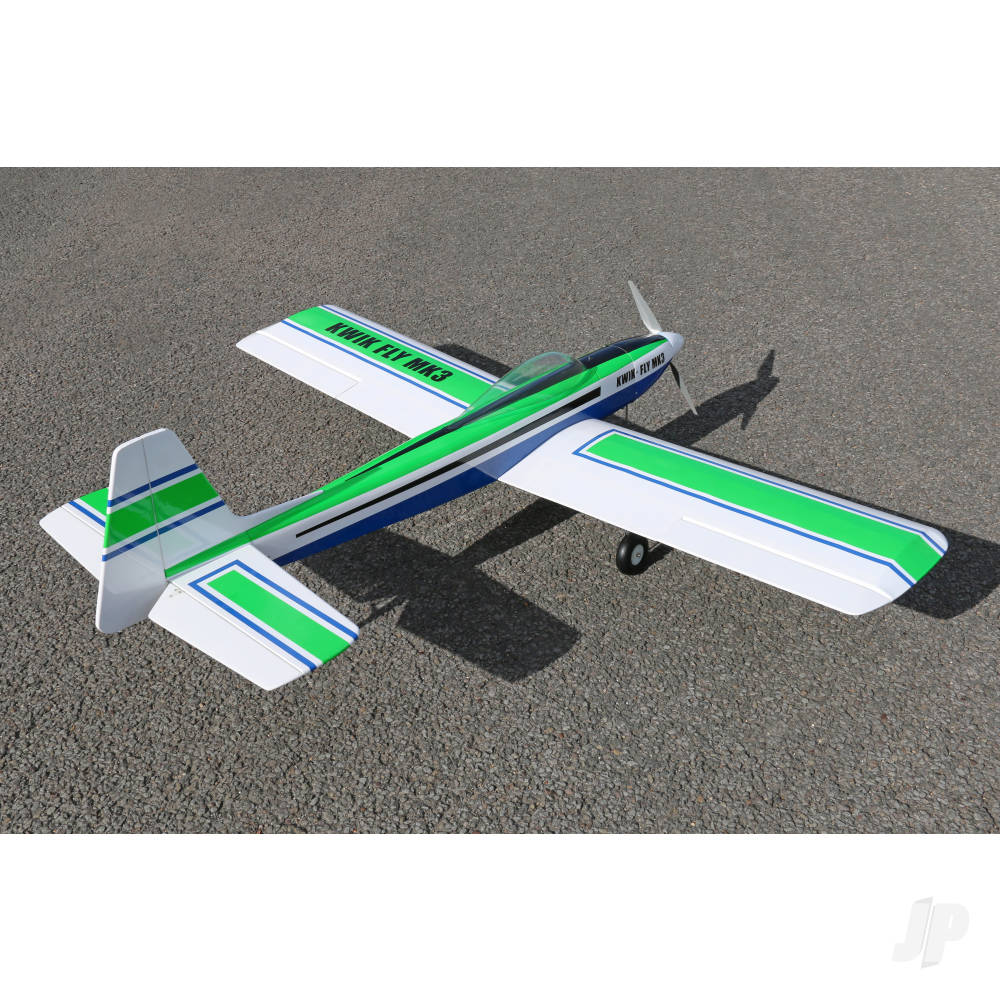

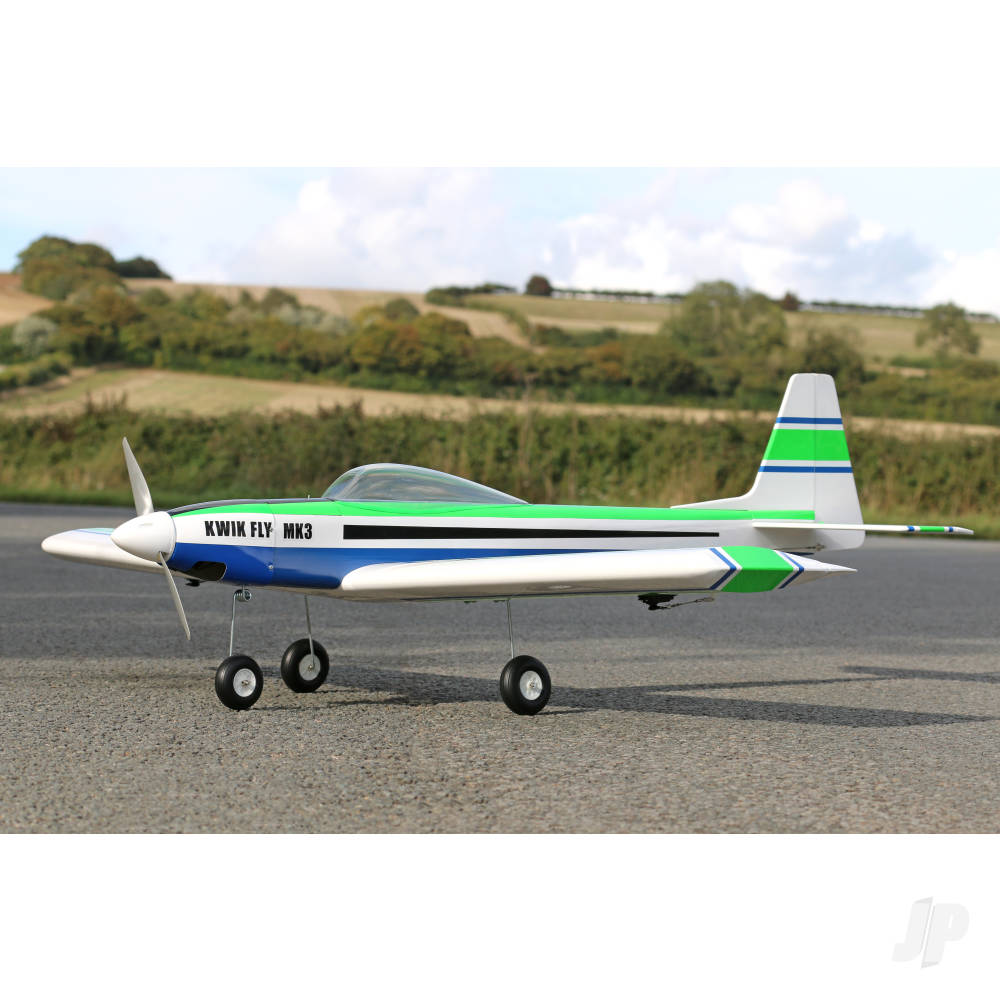

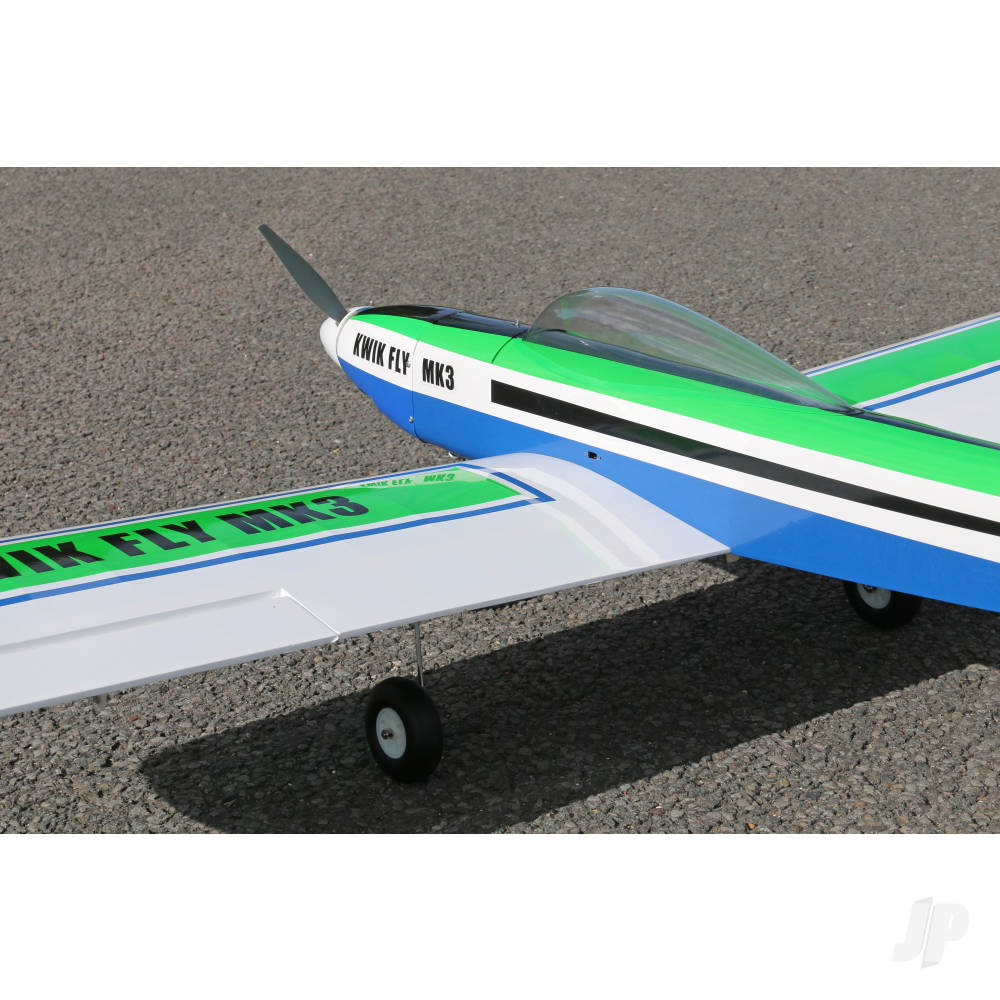

Arguably the nicest flying low wing sportster available, the Phil Kraft Kwik Fly Mk.3 is famed for winning the 1967 Aerobatic World Championships and is adored by all who get their hands on one. Harking back to a time before computer transmitters, mixing functions and digital trim compensation, the Kwik Fly uses pure aerodynamics and good design to ensure neutral longitudinal stability, a harmonised, locked-in control response and a performance-driven power to weight ratio.

Weights & Dimensions

Approx. Flying Weight	kg	6.6lbs
Shipping Weight	4.46kg	9.83lbs
Product Length	1,370mm	54in
Product Wingspan	1,600mm	63in
Product Wing Area	48dm2	744in2
