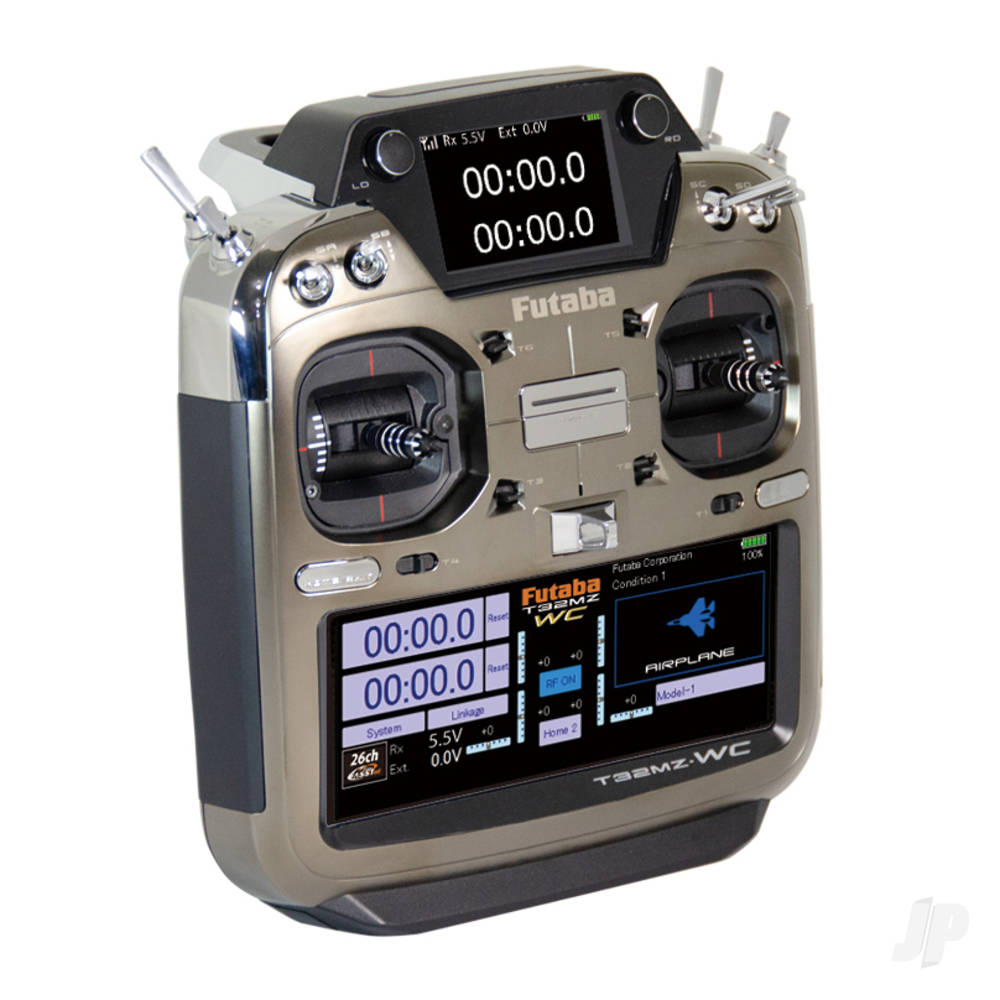

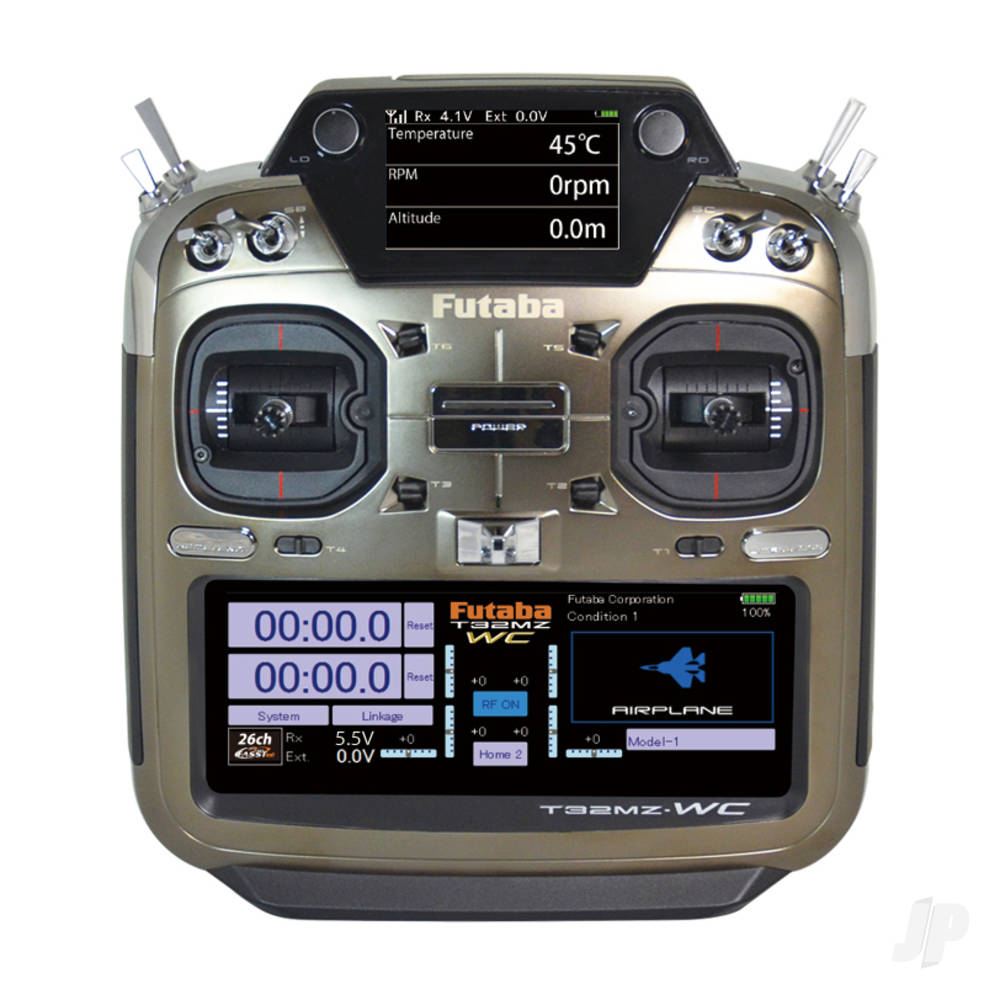

Futaba 32MZ-WC 26-channel Air Radio (Multi Mode) with R7214SB Rx

Futaba


€2,999.99




Share this product


  • Futaba 32MZ-WC 26-channel Air Radio (Multi Mode) with R7214SB Rx
  • Key Features
    • FASSTest26, FASSTest18, FASSTest12, FASST-MULTI, FASST-7, S-FHSS & T-FHSS protocols.
    • 26 channels (24+2).
    • High quality gun metal finish.
    • Full colour 6.0 inch touchscreen.
    • Switch upgrade / replacement.
    • Voice / voice recording.
    • Telemetry system.
    • Four stick modes (1-4).
    • SD card software update.
    • Touch screen.
    • High capacity 6600mAh LiPo.
    • Earphone jack.
    • USB charging.
    • Calendar clock.
    • S.BUS I/F enabled.
    • Trainer system.
    • Vibration alert.
    • Microphone.
    • +/-240 step sub trim.
    • 8 flight conditions.
    • 30 pre-programmed mixers.
    • 10 free programmable mixers.
    • Retract and door sequencer.
    • 13 fixed-wing types.
    • 3 fixed-wing tail types.
    • 2 fixed-wing rudder types.
    • 8 helicopter swash types.
    • Supports 14 telemetry sensor types.
    • Music playback.
    • GPS enabled.
    • Non-contact stick potentiometer.
    • Windows CE operating system.
    What's in the Box
    • 1x 32MZ-WC 26-channel transmitter.
    • 1x R7214SB receiver.
    • 1x 6600mAh LiPo Tx battery pack.
    • 1x AC adapter.
    • 1x Neck strap.
    • 1x Toolkit (Allen keys, LCD stylus, switch bezel tool).

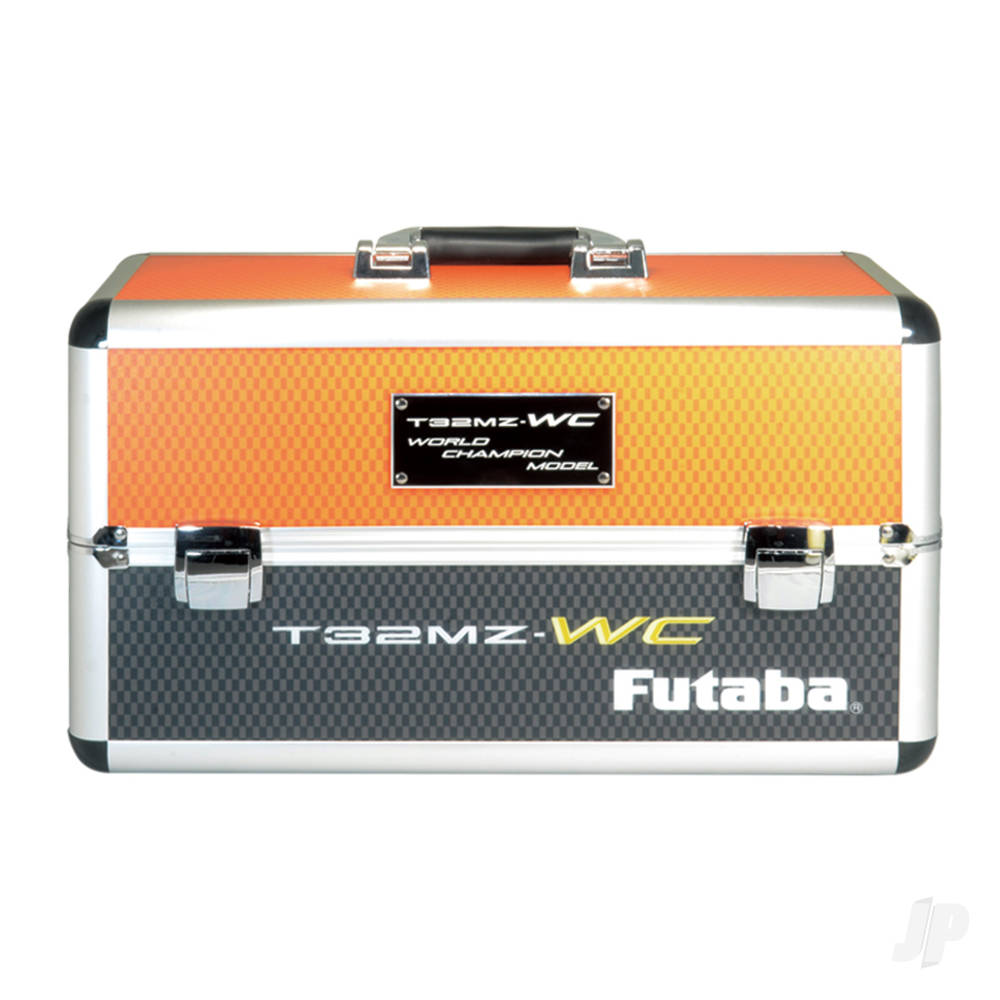

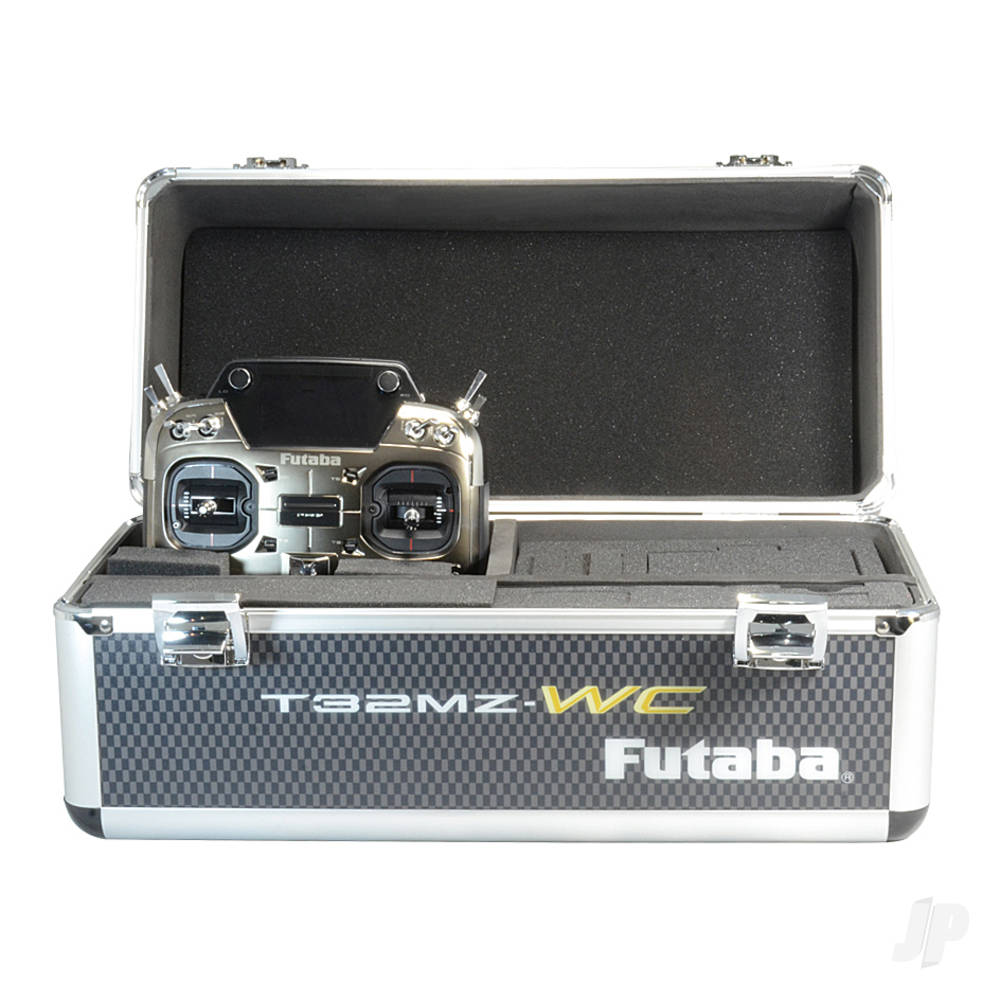

    • 1x World Champion transmitter case.
    • 1x Switch harness.
    • 1x Short manual (full manual download).

    Product Description
    Celebrating Futaba's 2023 FAI F3A & F3C World Championship wins the new 32MZ-WC has all the quality, reliability and programming power of the standard 32MZ, along with some valuable extras for pilots at the top of their game. Offered in a premium gun metal finish, along with a suitably large and sturdy metal case, the 32MZ-WC leaves you wanting for nothing. No games, no gimmicks, just solid, dependable functionality tailored to pilots who demand the sophistication and flexibility to operate model aircraft to World Championship winning standards and expectations.

    NEW – FASSTest 26ch protocol. 24 (proportional) +2 (toggle) channels of high speed data transmission.
    NEW – Retract and door sequencer.
    NEW – R7214SB FASSTest26 receiver, equipped with FASSTest dual Rx link system.
    NEW – Sub trim balance, to harmonise the movement of multiple servos operating single surfaces.
    NEW – Servo ID list in S.BUS servo setting display.
    NEW – DLPH-2 (Dual Link Power Hub) settings.
    NEW – Receiver setting. A function that allows Rx settings to be altered at the Tx.

    Recognised the world over as a system that ticks every box the 32MZ has acquired many friends and, by virtue, the 32MZ-WC, with its added extras, can only build on that following and reputation. Truth is the feature list is huge, however here's a hint of what to expect:

    S.BUS2 SYSTEM
    Multiple servos, gyros and telemetry sensors can be easily installed with a minimum of cables.

    WINDOWS EMBEDDED COMPACT 7
    A purpose-designed operating system for compact electronic devices which offers outstanding stability and dependability.

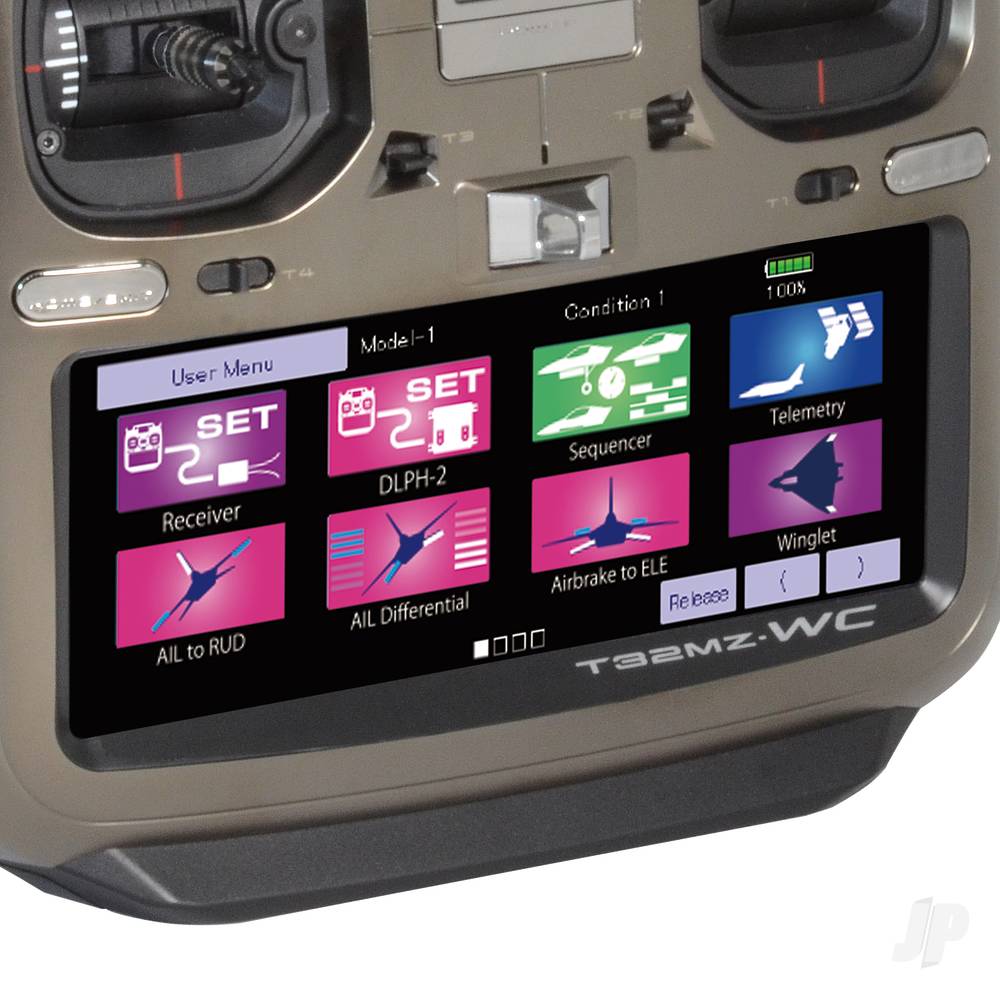

    COLOUR LCD MAIN DISPLAY
    HVGA (640x 240 pixel) full colour backlit LCD transflective (indoor / outdoor visible) touch screen.

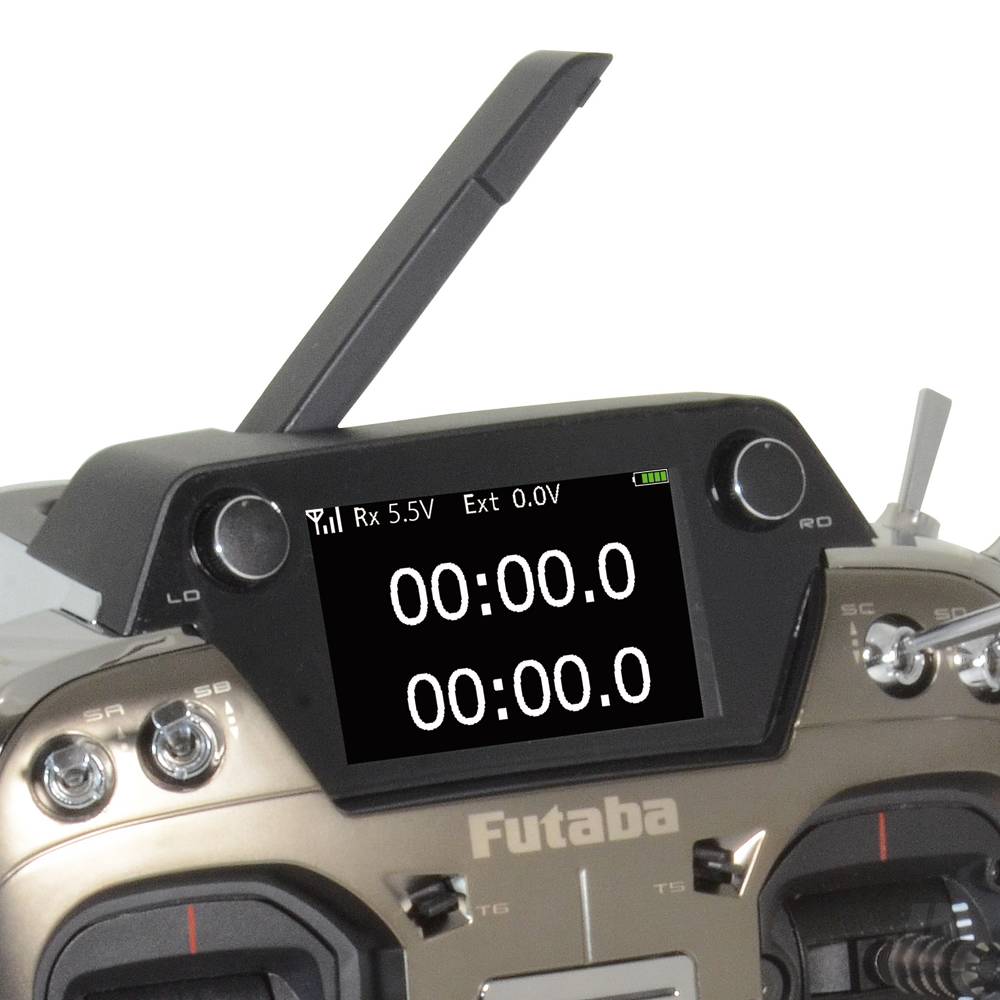

    COLOUR LCD SECONDARY DISPLAY
    A high quality reflective LCD for easy recognition of telemetry information.

    MUSIC PLAY
    Windows Media Audio (WMA) files can be played back using the microSD card port. Listen using the internal speaker or stereo headphones. A switch can be assigned to start and stop your music.

    VOICE RECORDING
    Record voice commands using the internal microphone and assign to certain switches.

    SD CARD PORT
    Update software and store model data, music files, voice files and picture files using the microSD port.

    HIGH CAPACITY LIPO
    6600mAh offers extended flight times and real peace of mind.

    INTUITIVE PROGRAMMING
    Model-specific programming and editing has never been easier.

    MULTIPROP CHANNEL EXPANSION
    Using the MPDX-1 multiprop decoder (sold separately) one channel can be divided into eight channels. Two MPDX-1s can be used.

    FEELS GOOD
    Dual bearing gimbals and magnetic detection non-contact potentiometers offer fine, ultra-precise, long-lasting operation. A throttle stick external adjustment screw allows ratchet or self-neutralising spring adjustment.

    SWITCH REPLACEMENT
    Change four of the toggles on the right and left shoulder with your chosen two-position, three-position or momentary switch.
