MG2107WHV Wing Servo

Mac Gregor


€43.99


Click here to be notified by email when this product becomes available.


Share this product


  • aero-icon metalgear-icon metalcase-icon
    • High Performance, Digital High Voltage Wing Servo
    • High-Precision Metal Gears With Hard Anodising
    • Full CNC Aluminium Case, with Anodised Purple Centre Case
    • High Quality Coreless Motor
    • Ultra-Thin 8mm Thickness
    • Dual Ball Bearings

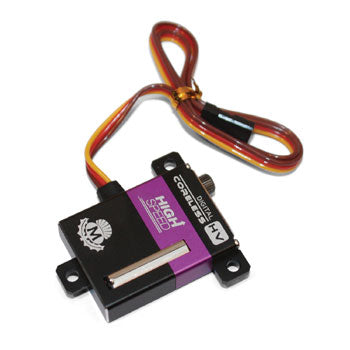

    The MG2107WHV is an ultra thin (8mm), high speed wing servo, part of MacGregor's range of high voltage digital servos designed for General use in RC Aeroplanes.

    MacGregor's HV servos are designed with motors and electronics that operate off the direct voltage of a 2-cell Li-Po, Li-Ion, or Li-Fe receiver battery pack. This eliminates the need for a regulator and lowers the chance for a power failure that can cause a catastrophic failure of your model. Also note that the HV servo specs are shown at the higher voltage (8.4V 2S LiPo) but will still operate on a standard 5-cell 6V NiCd, Ni MH battery with a reduction in performance of approximately 10% in speed and torque.

    Dead band: 2µs
    Working frequency: 1520µs / 330hz
    Motor: Coreless Motor
    Gearset: Full Metal
    Operating Voltage: 5.0 ~ 8.4V
    Operating Speed (6.0V): 0.15sec/60°
    Operating Speed (8.4V): 0.10sec/60°
    Stall Torque (6.0V): 4.7kg.cm
    Stall Torque (8.4V): 6.6kg.cm
    Dimensions: 25 x 8 x 34.3mm
    Weight: 21g (0.74oz)
    Connector Wire Length: JR 300mm
    Bearing: 2BB
    MG2107WHV Servo Drawing
