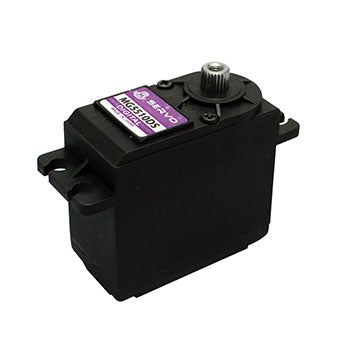

MacGregor MG5510DS Standard Servo

Mac Gregor

€24.99

Share this product

  • MacGregor MG5510DS Standard Servo

    aero-icon metalgear-icon
    • High Performance Digital Standard Servo
    • High-Precision Metal Gears
    • High Quality Brushed Motor
    • 25T (Futaba Type) Spline
    • JR Style Lead and Plug
    • Dual Ball Bearings

    The MG5510DS is a 10Kg high performance standard size digital servos.

    Operating Voltage: DC 4.8 - 6.0V
    Dead Band: 1µs 1520µs / 330hz
    Motor: DC Brushed Motor
    Operating Speed (4.8V): 0.15sec/60°
    Operating Speed (6.0V): 0.12sec/60°
    Stall Torque (4.8V): 8.89Kg.cm
    Stall Torque (6.0V): 9.98kg.cm
    Dimensions: 40.5 x 20.2 x 40.5mm
    Weight: 55.6g
    MG5510DS Servo Drawing
