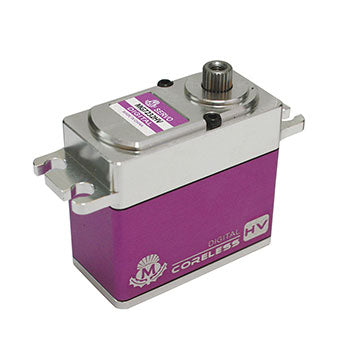

- MacGrgor MG7232HV Coreless Servo 31.5kg
-
- MacGrgor MG7232HV Coreless Servo 31.5kg
- High performance high voltage coreless digital servo
- High-precision metal gears with hard anodising
- Full CNC Machined Aluminium Shell Structure
- Dual Bearing Support
- JR style lead and plug
- Waterproof
The MG7232HV is part of MacGregor's new range of high voltage digital servos. This high voltage, high torque servo has been designed for use with large scale & aerobatic aircraft.
MacGregor's HV servos are designed with motors and electronics that operate off the direct voltage of a 2-cell Li-Po, Li-Ion, or Li-Fe receiver battery pack. This eliminates the need for a regulator and lowers the chance for a power failure that can cause a catastrophic failure of your model.
Dead band: 1µs Working frequency: 1520µs / 330hz Motor: Coreless Motor Operating Speed (6.0V): 0.12sec/60° Operating Speed (8.4V): 0.09sec/60° Stall Torque (6.0V): 26.2kg.cm (363.83oz/in) Stall Torque (8.4V): 31.5kg.cm (437.43oz/in) Dimensions: 40.5 x 20.5 x 36mm /1.59 x 0.80 x 1.43in Weight: 72g (2.54oz) Connector Wire Length: JR 265mm (10.43in) Bearing: 2BB
