- High Performance, Standard Size, Multi Voltage Digital Servo
- High-Precision Steel Gears
- Full CNC Aluminium Case with Anodised Purple Centre Case
- High Quality Brushless Motor
- Dual Ball Bearing
- Long Working Life
- 25T (Futabe Type) Spline
- JR style plug and lead (300mm)
- Waterproof IPX8 Grade
- 4096 Resolution

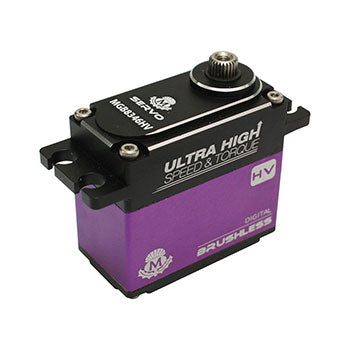

The MGB8346HV is a programmable waterproof ultra high speed and torque brushless digital servo, part of MacGregor's range of high voltage servos designed for General use in RC Aeroplanes, Cars & Helicopters.
MacGregor's HV servos are designed with motors and electronics that operate off the direct voltage of a 2-cell Li-Po, Li-Ion, or Li-Fe receiver battery pack. This eliminates the need for a regulator and lowers the chance for a power failure that can cause a catastrophic failure of your model. Also note that the HV servo specs are shown at the higher voltage (8.4V 2S LiPo) but will still operate on a standard 5-cell 6V NiCd, Ni MH battery with a reduction in performance of approximately 10% in speed and torque.
MGB8346HV Full Specification Sheet - [ Download ]
Dead band: 2µs Working frequency: 1520µs / 330hz Motor: Brushless Motor Gearset: Steel Spline: 25T Operating Voltage: 5.0 ~ 8.4V Operating Speed (5.0V): 0.17sec/60° Operating Speed (6.0V): 0.14sec/60° Operating Speed (7.4V): 0.11sec/60° Operating Speed (8.4V): 0.10sec/60° Stall Torque (5.0V): 26kg.cm Stall Torque (6.0V): 32kg.cm Stall Torque (7.4V): 40kg.cm Stall Torque (8.4V): 45.5kg.cm Dimensions: 40.6 x 21 x 37.6mm Weight: 83.7g Connector Wire Length: JR 300mm Bearing: 2BB
