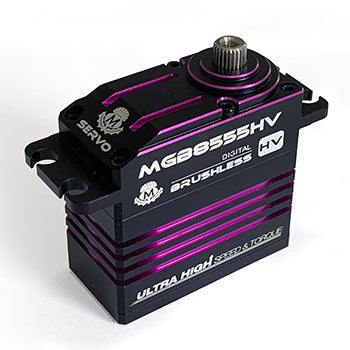

MacGrgor MGB8555HV 54.7Kg / 0.12s Brushless HV Servo

Mac Gregor


€139.99




Share this product


  • MGB8555HV 54.7Kg / 0.12s Brushless HV Servo
  • aero-icon heli-icon car-icon waterproof-icon metalgear-icon metalcase-icon
    • MacGrgor MGB8555HV 54.7Kg / 0.12s Brushless HV Servo
    • High Performance, Standard Size, Multi Voltage Digital Servo
    • High-Precision Steel Gears
    • Full CNC Aluminium Hull Case
    • High Quality Brushless Motor
    • Dual Ball Bearing
    • Long Working Life
    • 25T (Futabe Type) Spline
    • JR style plug and lead (300mm)
    • Waterproof

    The MGB8555HV servo is a waterproof ultra high speed and torque brushless digital servo, part of MacGregor's range of high voltage servos designed for General use in RC Aeroplanes, Cars & Helicopters.

    MacGregor's HV servos are designed with motors and electronics that operate off the direct voltage of a 2-cell Li-Po, Li-Ion, or Li-Fe receiver battery pack. This eliminates the need for a regulator and lowers the chance for a power failure that can cause a catastrophic failure of your model.

    Dead band: 2µs default
    Working frequency: 1520µs / 330hz
    Motor: Brushless Motor
    Gearset: Steel
    Spline: 25T
    Operating Voltage: 5.0 ~ 8.4V
    Operating Speed (5.0V): 0.20sec/60°
    Operating Speed (6.0V): 0.17sec/60°
    Operating Speed (7.4V): 0.13sec/60°
    Operating Speed (8.4V): 0.11sec/60°
    Torque (5.0V): 32.6kg.cm
    Torque (6.0V): 39.1kg.cm
    Torque (7.4V): 48.2kg.cm
    Torque (8.4V): 54.7kg.cm
    Dimensions: 40 x 20 x 39.1mm
    Weight: 85g
    Connector Wire Length: JR 310mm
    Bearing: 2BB
    MGB8555HV Servo Drawing
