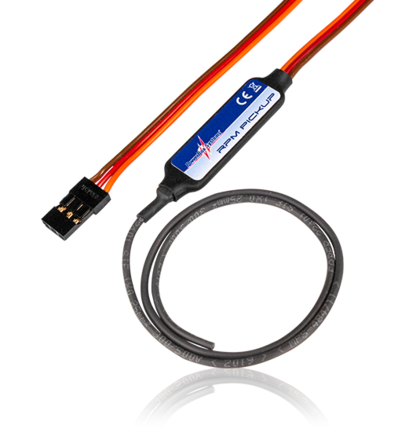

Powerbox RPM Pickup 6616

Powerbox


€9.99


Click here to be notified by email when this product becomes available.


Share this product


    • Powerbox RPM Pickup
  • Features

    • Rotational speed up to 10,000 rpm
    • Ultra-simple to install
    • Accurate rev-count detection
    • For two-stroke and four-stroke engines
    • Compact design
    • Low weight

    Technical Data

    Operating voltage 4.0V - 9.0V
    Current drain Power-on state max. 5mA
    Dimensions 40 x 10 x 4 mm
    Weight 7g
    Temperature range -30°C to +85°C

    Product description

    Installation is quick and simple: the sensor lead attached to the RPM Pickup is simply wound round one of the ignition system’s high-voltage leads. The field strength of the high voltage is sufficient to supply accurate rotational speed information to the sensitive detector in the RPM Pickup. The unit can be used with all types of engine - two-stroke and four-stroke.

    The RPM Pickup is connected to the output of the SparkSwitch Pro using a Y-lead.
