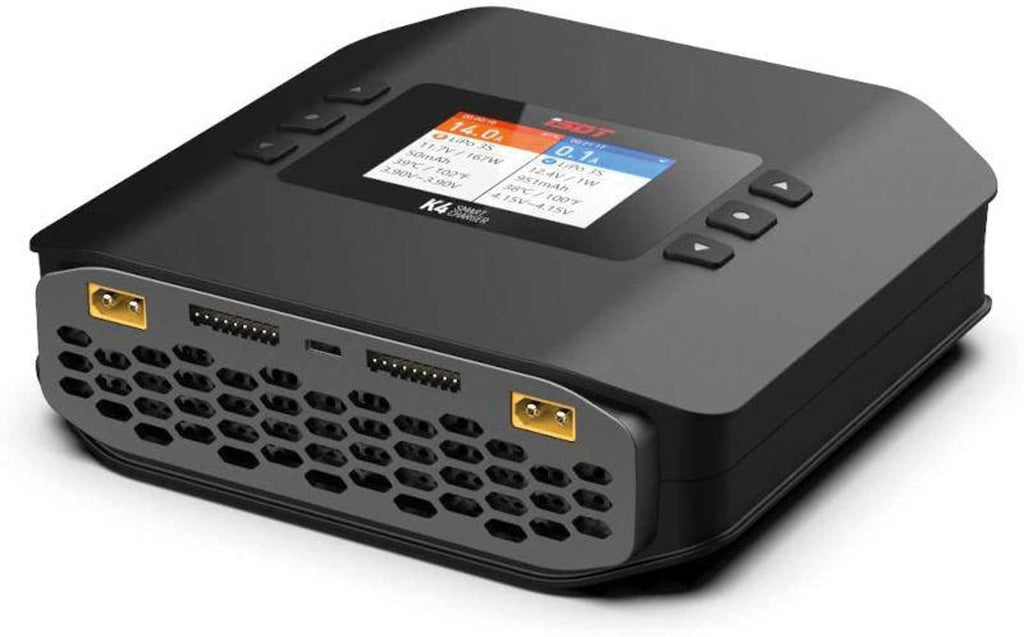

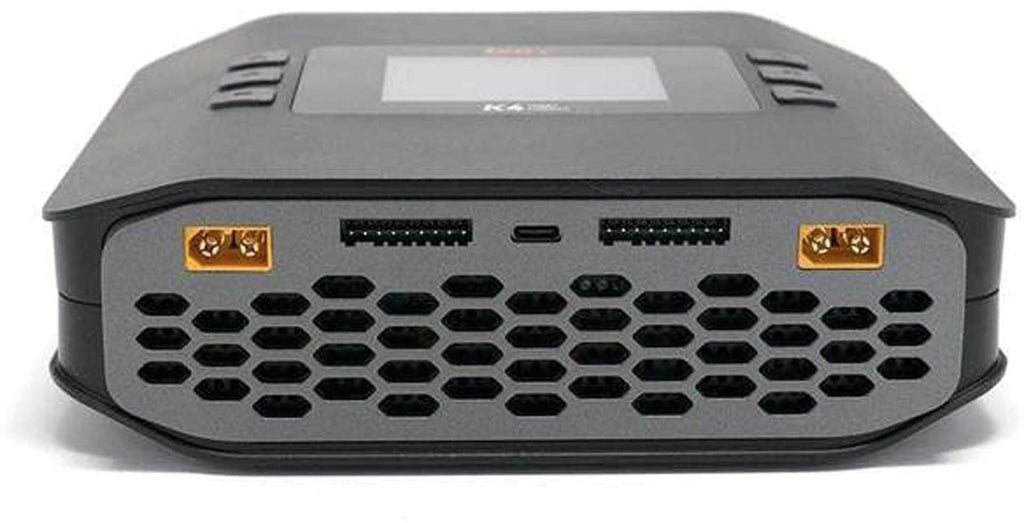

ISDT K4 Smart Charger AC / DC 1-8S / 2x 20A 2x 600W

ISDT K4 Smart Charger AC / DC 1-8S / 2x 20A 2x 600W

iSDT

€249.99

Share this product

  • ISDT K4 Smart Charger AC / DC 1-8S / 2x 20A 2x 600W
  • UK 3 Pin Plug Included.
  • Features:

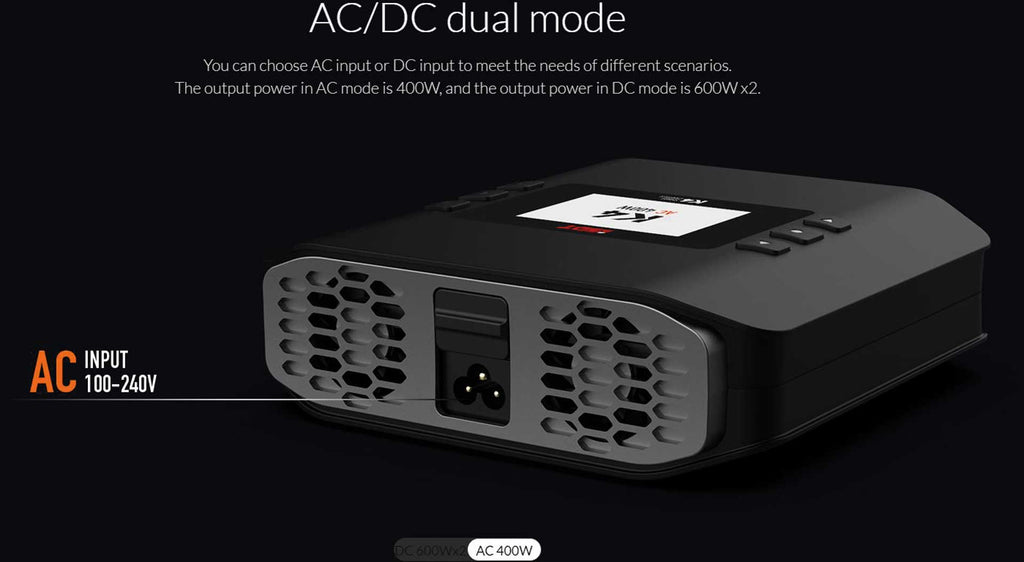

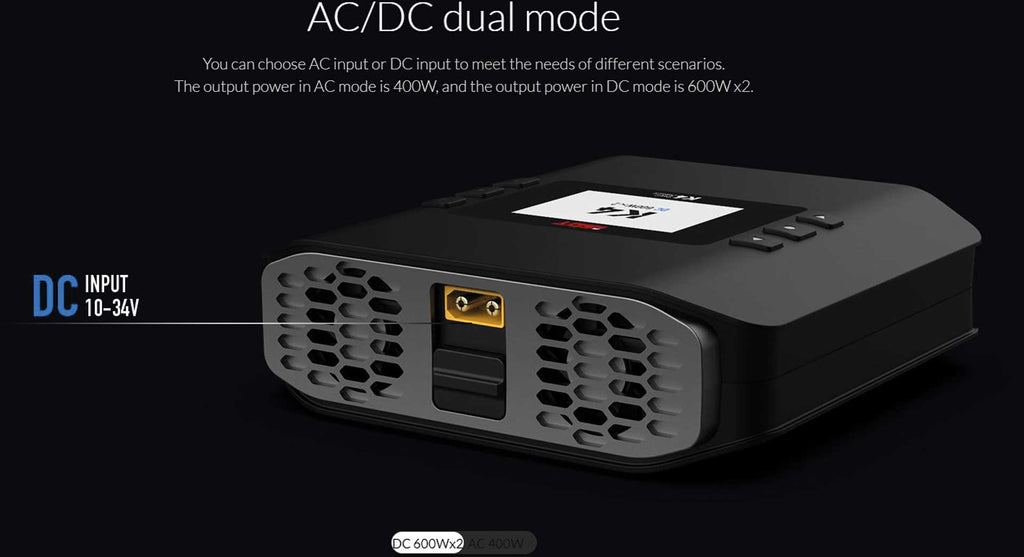

    • AC / DC dual mode, two-channel / 20A x2 / 600W x2
    • Intelligent charger
    • Independent two-channel charger
    • supports 1 ~ 8S lithium batteries
    • All-rounder, continuously high performance
    • Supports 1-8S LiFe, Li Ion, LiPo batteries, 1-7S LiHv, ULiHv batteries
    • Supports 1-14S Pb battery and 1-18S NiMH / Cd battery
    • The maximum output power is 1200 W.
    • Both channels independently support 1-8S batteries.

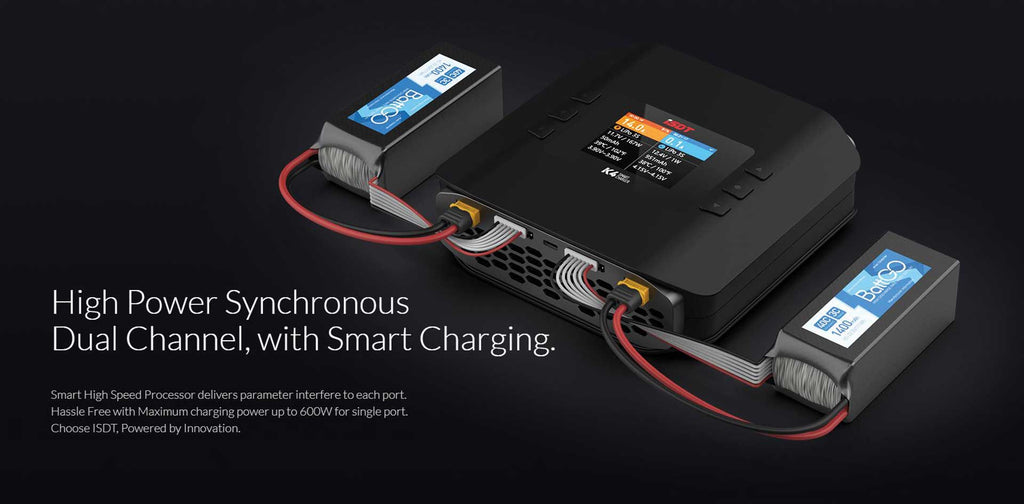

    • Two channels, with "Smart Charging"
    • Smart High Speed ​​Processor provides parameters for each connection.
    • Problem-free with a maximum charging power of up to 600 W for one connection.
    • Choose ISDT, powered by innovation.

    The new generation of the K4:
    • Smart battery information
    • Interconnection technology
    • It is fully compatible with BattAir's innovative technology
    • Connection of the battery via the XT60 connector system, automatically recognizes the battery type
    • automatic retrieval and comparison of battery data
    • safe setting of the working parameters and optimization of the charging algorithm.

    Technical information:
    • Input voltage: AC 100-240V / DC 10-34V
    • Output voltage: DC 1-34V
    • Max. Input current: DC 45A
    • Max. Charging power: AC 400W / DC 600W × 2
    • Max. Discharge power: 30W × 2
    • Parallel charging power / max .: 800W / 35A
    • Parallel discharge power / max .: 60W / 3A
    • Supported battery types and number of cells: LiFe, LiIon, LiPo 1-8S; LiHv, ULiHv 1-7S; Pb 1-14S; NiMH / Cd 1-18S
    • Charging current max .: 0.2-20.0A × 2
    • Discharge current max .: 0.2-3.0A × 2
    • Balancer current max: 1.5A / cell
    • Abnormal Voltage Alarm: Assistance Yes
    • Alarm in the event of an incorrect setting of the number of cells: Support Yes
    • Supported working temperature: 0-40 ° C
    • Storage temperature: -20-60 ° C
    • Dimensions: 176 × 183 × 57mm
    • Weight: approx. 1230g


    Technical specifications
    Input voltage (V): 10-240
    chargeable battery types: LiPo / LiFe / Lilon / LiHV / NiMH / NiCd / Pb
    loadable number of cells: 1-8 Lixx, 1-7 LiHV, 1-18 Nixx, 1-14 Pb
    Charging current (A): 0.2-20 x2
    Discharge current (A): 0.2-3 x2
    Chargers (Category): AC / DC 12V + 240V
    Power / watt (W): AC 400 / DC 600 × 2
    Charging current (category): Up to 20A
    Discharge current (category): Up to 5A
