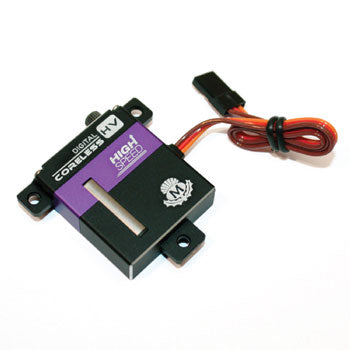

MG2611WHV Wing Servo

Mac Gregor


Share this product

  • aero-icon metalgear-icon metalcase-icon
    • High Performance, Digital High Voltage Wing Servo
    • High-Precision Metal Gears With Hard Anodising
    • Full CNC Aluminium Case, with Anodised Purple Centre Case
    • High Quality Coreless Motor
    • Dual Ball Bearings

    The MG2611WHV is an ultra high speed and torque wing servo, part of MacGregor's range of high voltage digital servos designed for General use in RC Aeroplanes.

    MacGregor's HV servos are designed with motors and electronics that operate off the direct voltage of a 2-cell Li-Po, Li-Ion, or Li-Fe receiver battery pack. This eliminates the need for a regulator and lowers the chance for a power failure that can cause a catastrophic failure of your model. Also note that the HV servo specs are shown at the higher voltage (8.4V 2S LiPo) but will still operate on a standard 5-cell 6V NiCd, Ni MH battery with a reduction in performance of approximately 10% in speed and torque.

    Dead band: 2µs
    Working frequency: 1520µs / 330hz
    Motor: Coreless Motor
    Gearset: Full Metal
    Operating Voltage: 5.0 ~ 8.4V
    Operating Speed (6.0V): 0.13sec/60°
    Operating Speed (8.4V): 0.10sec/60°
    Stall Torque (6.0V):
    Stall Torque (8.4V):
    Dimensions: 30 x 10 x 35.5mm
    Weight: 26g (0.92oz)
    Connector Wire Length: JR 185mm
    Bearing: 2BB
    MG2611WHV Servo Drawing
